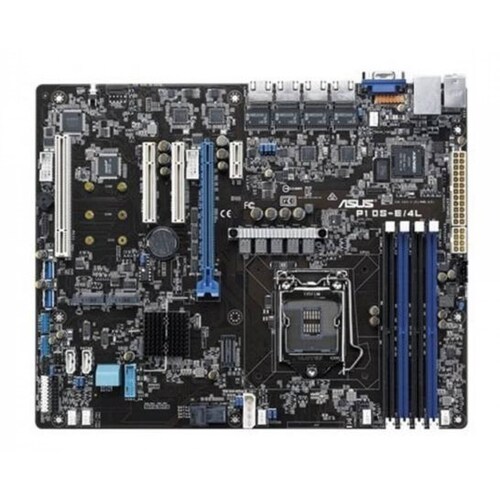

Tarjeta Madre Asus P10s-e/4l 1151 Vga Port Dual M.2

Tarjeta Madre Asus P10s-e 4l 1151 Vga Expansión extrema con tecnología Platinum de ahorro energético Dual M.2 RAID 0 para un rendimiento superior Soporte PCI para aprovechar dispositivos antiguos Quad Intel I210 Server Class GbE con un gran ancho de banda Eficiencia energética de grado Platinum con condensadores sólidos ultrarresistentes y Beat Thermal Choke III Procesador / Sistema Bus 1 x Socket LGA1151 Intel® Xeon® processor E3-1200 v5 product family Intel® CoreTM i3 processors Intel® PentiumTM processors Intel® CeleronTM processors Lógica de núcleo Intel® C236 Chipset Memoria Total Slots : 4 (2-channel) Capacity : Maximum up to 64GB UDIMM Memory Type : DDR4 2133 UDIMM non ECC and with ECC Memory Size : 16GB * Please refer to ASUS server AVL for the latest update Puertos de Expansión Slot Location 1 : PCI 32bit/33MHz Slot Location 4 : PCI-E x8 (Gen3 X4 Link) Slot Location 5 : PCI-E x8 (Gen3 X8 Link) Slot Location 6 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 5 is occupied Slot Location 7 : MIO Slot for Audio card Follow SSI Location# Form Factor ATX (12"x9.6", 305mm x 244mm) Capacidades ASUS Control de velocidad de ventiladores Compatible con rack y formato vertical ASWM Enterprise Almacenamiento SATA Controller : Intel® C236 8 x SATA3 6Gb/s ports 2 x M.2 connector (2280/2260/2242) *1 Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) SAS Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional) ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional) Conectividad de red 4 x Intel® I210AT + 1 x Mgmt LAN Gráfica Aspeed AST2400 with 32MB VRAM I/O Internos 1 x TPM header 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) 1 x USB 3.0 pin header , Up to 2 Devices 2 x USB 2.0 pin header , Up to 4 Devices 2 x USB connector*2 6 x Fan Header , 4pin 1 x SMBus 1 x Chassis Intruder 4 x Front LAN LED 2 x Serial Port Header 1 x Device Power Connector*3 1 x
